Wide Boy Front Hub
For the DJ connoisseur who would rather have the lateral wheel strength that wider spaced spoke flange set up can provide, than have a disc mount.
Sleek, weight saving purist design.
Used and trusted by FMB World Tour 2013 Champion Sam Pilgrim.
With the wider flanges and no brake torque to worry about, you can run fewer spokes and save even more weight.
20x110mm T-axle compatible with optional end cap and axle systems to allow regular QR, 15mm T-axle, or 3/8" or 14mm nutted*.
*To change to nutted axles you will need the following:
a Halo Spin Dr QR Front Axle Kit HUHASDAQ, for the alloy inner threaded axle

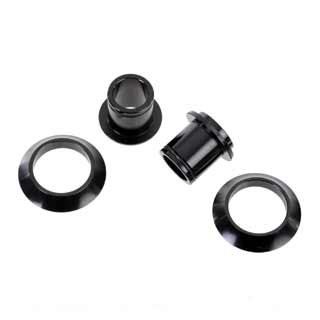

a Halo Spin Dr 15mm Axle kit HUHASDA5, for the 2 alloy cone spacers
and your choice of stub axle 3/8" HUHASDS3 or 14mm HUHASDS4
Lightweight forged and CNC alloy shell.
Wide spaced spoke flanges.
2 sealed bearings.
QR end caps and 20x110mm T-axle caps supplied.
Optional 15mm XTR adapters.
Optional 3/8" or 14mm nutted stub axles.
Weight; 200g. (including 20mm fittings - excluding T-axle)
Flange Diameter; 52mm
Centre to Flange; CL 34, CR 34.
110mm O.L.D. (or 100 with other axle options)
Black or Red anodised or White powder coat.
