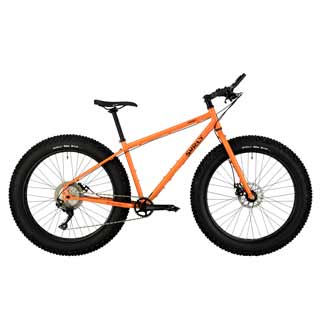

Surly - Bikes/frames: Surly Pugsley Bike Xs Ora



Pugsley

Way back in twenty-aught-three, we found ourselves tired of riding over the same old sorts of terrain. We wanted to go over there but the trail only went over here. We wanted to go for long rides on the beach. We wanted to get our float on in the winter. It was quite the Conundrum. Seeing as there wasn’t a bike that could do all those things, we made one. Thus, the Pugsley was born and set free unto the world to wreak havoc on previously unridden territory. Since that time, the Pugsley (and fat bikes in general) have evolved quite a bit. So, allow us to re-introduce you to Pugsley.

Previously a great all-around fat bike, the Pugsley has been redesigned to be the ultimate off-road touring and exploration rig. Maximalist off-road tourists, explorers looking to get off the beaten path, and survivalists for whom being stranded isn’t an option will all appreciate Pugsley’s wider footprint, longer and more stable wheelbase, and plethora of accessory mounts. In the rear, Pugsley now more closely resembles the rest of our dirt touring models with a few quirks of its own. It has a 142 x 12mm rear dropout with a dedicated Rohloff torque arm slot. If you’d rather run a standard 135mm quick-release setup, Surly 10/12 Adapter Washers allow you to do so. It still has the 17.5mm offset that Pugsley is known for but we’ve also offset the rack mounts. Rear racks now fit centered over the tire the way the dark lord intended. But what good is a rack if you kick your pannier every pedal stroke, right? To mitigate that, we lengthened Pugsley’s chainstays by 12mm. That extra 12mm also equates to extra stability and improved handling.

While the complete bike rolls on our Edna 26 x 4.3” tires and a full 1x11 drivetrain, the rear will clear a full 26 x 4.8” if you use a wider Q-factor crank and are ok with some drivetrain limitations. Complete bikes also feature our Moloko handlebar for a multitude of hand positions and accessory mounting. And while we’re on the subject of accessories… Pugsley has a slew of mounting options — Three-Pack Mounts (two on the fork, two on the downtube), a water bottle mount on the seat tube, and front and rear rack mounts. Fuck the kitchen sink, bring the whole damn kitchen!

Pugsley’s 135mm-spaced fork has the same 17.5mm offset as the rear. This helps with wheel swapability when the shit really hits the fan. And trust us, the shit will hit the fan. Throw an extra freewheel on the front hub and make the ‘ol switcheroo if you find yourself with a blown rear freehub or mangled derailleur. Any bike will get you out there. Pugsley will get you home. If you’re looking for 4.8” tire clearance to match the rear, you can easily swap the stock fork with a Moonlander fork to make it so. You should know that doing so negates wheel swapability so if the shit does hit the fan, you might just find yourself covered in shit.

Specifications

    Frame: 4130 CroMoly
    Fork: 4130 CroMoly
    Headset: Cane Creek 40 custom
    Handlebar: Surly Moloko Bar
    Stem: ProMax 31.8
    Saddle: WTB Volt Sport
    Seatpost: 2 Bolt 27.2
    Rear Derailleur: Shimano SLX RD-7000 GS 11 Speed
    Chain: KMC X11-1 EPT Anti-Rust
    Crankset: Race Face AEffect, 30T
    Cassette: Sunrace 11 speed, 11-46
    Bottom Bracket: Race Face
    Brake Levers: SRAM FR-5
    Brakes: Avid BB7 Mountain
    Rims: Surly My Other Brother Darryl (80mm)
    Hubs: Surly Ultra New 135mm (F) /Shimano M525 135mm (R)
    Tyres: Surly Edna, 26x4.3, 60 TPI

Geometry

geometry pdf


Free shipping on all website orders over £25 to UK mainland.

What Others Think...

email this page to a friend
  Product Description Colour  Size  Wt(g)  StockNo  Price
Per
  Dispatched in:

  Pugsley, 26" Adventure Bike, Disc Brake, SLX 1x11, BB7 Brakes, 135 Ft, 135/142 Rr   Candied Yam Orange  XS    5SUPY81O  Web: £2,200.00    EACH  BUY

 add to wishlist

Special Order

  Pugsley, 26" Adventure Bike, Disc Brake, SLX 1x11, BB7 Brakes, 135 Ft, 135/142 Rr   Candied Yam Orange  Sm    5SUPY82O  Web: £2,200.00    EACH  BUY

 add to wishlist

Special Order

  Pugsley, 26" Adventure Bike, Disc Brake, SLX 1x11, BB7 Brakes, 135 Ft, 135/142 Rr   Candied Yam Orange  Md    5SUPY83O  Web: £2,200.00    EACH  BUY

 add to wishlist

Special Order

  Pugsley, 26" Adventure Bike, Disc Brake, SLX 1x11, BB7 Brakes, 135 Ft, 135/142 Rr   Candied Yam Orange  Lg    5SUPY84O  Web: £2,200.00    EACH  BUY

 add to wishlist

In Stock

  Pugsley, 26" Adventure Bike, Disc Brake, SLX 1x11, BB7 Brakes, 135 Ft, 135/142 Rr   Candied Yam Orange  XL    5SUPY85O  Web: £2,200.00    EACH  BUY

 add to wishlist

Special Order
