Halo: Halo Mt Supa.d Hg Rr Hub 36h Bk



MT Supadrive Hub

Our MT series hubs are our flagship mountain bike hub range. The MT series encompass everything we feel hubs for mountain biking should offer.

Durability, modularity and light weights make the MT Series a simple choice.

Suited best to XC, trail and enduro bikes alike, the MT Supadrive hub offers a 120 point near instant engagement with the ability to withstand substantial torque loads, such as those found with wide range cassettes. With multiple World Championship titles across a range of disciplines the Supadrive system is tried and tested to the very highest level and is our most advanced and reliable drive system to date.

Wide spoke flanges, sealed cartridge bearings and a Cr-Mo tube axle in the MT Supadrive hub ensure longevity.

Designed to be run with mountain bike gearing, the MT Supadrive hub features an XD driver or alternatively a MTB width HG freehub. Please refer to the GXC Supadrive for a 11 speed road cassette compatibility.

An additional Boost adaptor kit is also available, to retrofit this hub into Boost compatible frames.

Replacement axle kits for Supadrive hub:

  • HXHASVTMHG – Suitable for HG type freehub includes 135mm QR and 142x12mm End cones
  • HXHASVTMXD – Suitable for XD type freehub includes 135mm QR and 142x12mm End cones

Specifications

Material6061 Alloy forged hub shell
Drillings32H or 36H
Bearings2 x 6902 (hub) 3 x 6802 (SRAM Freehub) or 1 x 6902 and 6802 (HG Freehub)
AxleCro Mo with 135mm QR/12x142mm thru ends included
Disc MountIS 6-Bolt
Ratchet120 teeth triple-wedge pawl mechanism
Freehub BodyShimano HG or Sram XD
Spoke Hole Circle Diameter (PCD)58mm
Centre to FlangeLeft: 34mm, Right: 20mm
OLD135/142mm
Model Ref S-DRV-FG
ColourBlack, White, Red, Blue or Silver.


image of Halo MT Supadrive Hub image of Halo MT Supadrive Hub image of Halo MT Supadrive Hub SRAM XD in Black image of Halo MT Supadrive Hub SRAM XD in Black image of Halo MT Supadrive Hub SRAM XD

Freehub Guide

Which freehub type do I need for my cassette?

In the world of ever growing cassette options, the amount of freehubs on offer has needed to grow.

For geared hubs we currently offer Shimano type HG (Road or MTB types), SRAM type XD and XDR and Campagnolo ED type freehubs.

We have created the below diagrams to show the differences between the most commonly used types (Shimano HG and SRAM XD/XDR).

If you need any help understanding this confusing subject to help purchase a product, please feel free Contact us Download PDF



Related Products

HALO SUPA-D AL F/H BODY SHIM
MT Supadrive Freehub Body
RRP from £25.00

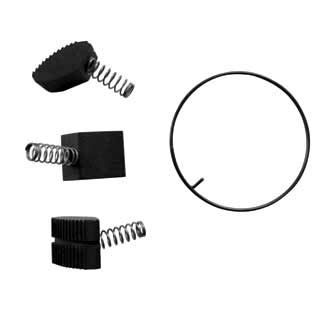

HALO PAWL/SPRING KIT S.DRIVE
Supadrive Spare Parts
RRP from £4.99

HALO S-DRV BOOST DISC ADAPT 6mm
MT Supadrive Boost Disc Adaptor
RRP £20.00

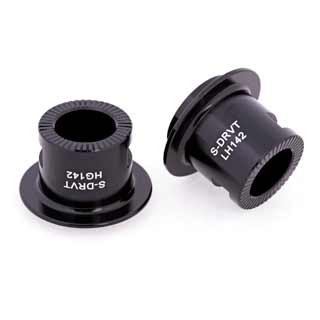

HALO MT S DV RR AXLE ENDS 12x135 HG
MT Supadrive Rear Axle End Cones
RRP from £7.99

Free shipping on all website orders over £25 to UK mainland.

More Information  What Others Think...

email this page to a friend
  Product Description Colour  Size  Wt(g)  StockNo  Price
Per
  Dispatched in:

  MT Supadrive HG, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, HG MTB alloy F/hub.   Black  32H  335  HUHASVH2K  Web: £169.99    EACH  BUY

 add to wishlist

Special Order

  MT Supadrive HG, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, HG MTB alloy F/hub.   Red  32H  335  HUHASVH2R  Web: £169.99    EACH  BUY

 add to wishlist

In Stock

  MT Supadrive HG, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, HG MTB alloy F/hub.   Silver  32H  335  HUHASVH2S  Web: £169.99    EACH  BUY

 add to wishlist

Special Order

  MT Supadrive HG, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, HG MTB alloy F/hub.   White  32H  335  HUHASVH2W  Web: £169.99    EACH  BUY

 add to wishlist

Special Order

  MT Supadrive HG, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, HG MTB alloy F/hub.   Black  36H  335  HUHASVH6K  Web: £169.99    EACH  BUY

 add to wishlist

In Stock

  MT Supadrive XD, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, XD MTB F/hub.   Black  32H  335  HUHASVX2K  Web: £169.99    EACH  BUY

 add to wishlist

In Stock

  MT Supadrive XD, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, XD MTB F/hub.   Red  32H  335  HUHASVX2R  Web: £169.99    EACH  BUY

 add to wishlist

In Stock

  MT Supadrive XD, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, XD MTB F/hub.   Silver  32H  335  HUHASVX2S  Web: £169.99    EACH  BUY

 add to wishlist

In Stock

  MT Supadrive XD, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, XD MTB F/hub.   White  32H  335  HUHASVX2W  Web: £169.99    EACH  BUY

 add to wishlist

In Stock

  MT Supadrive XD, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, XD MTB F/hub.   Black  36H  335  HUHASVX6K  Web: £169.99    EACH  BUY

 add to wishlist

In Stock
